  1.  Home » Products » Surge Protector Outlet » Open Electric 220V power voltage surge protector socket for European market

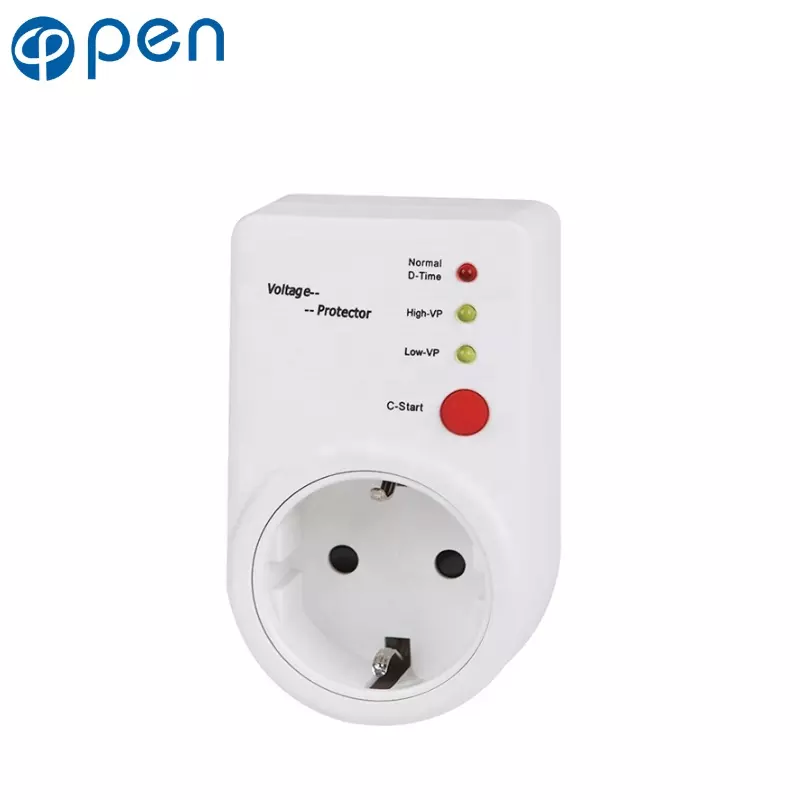

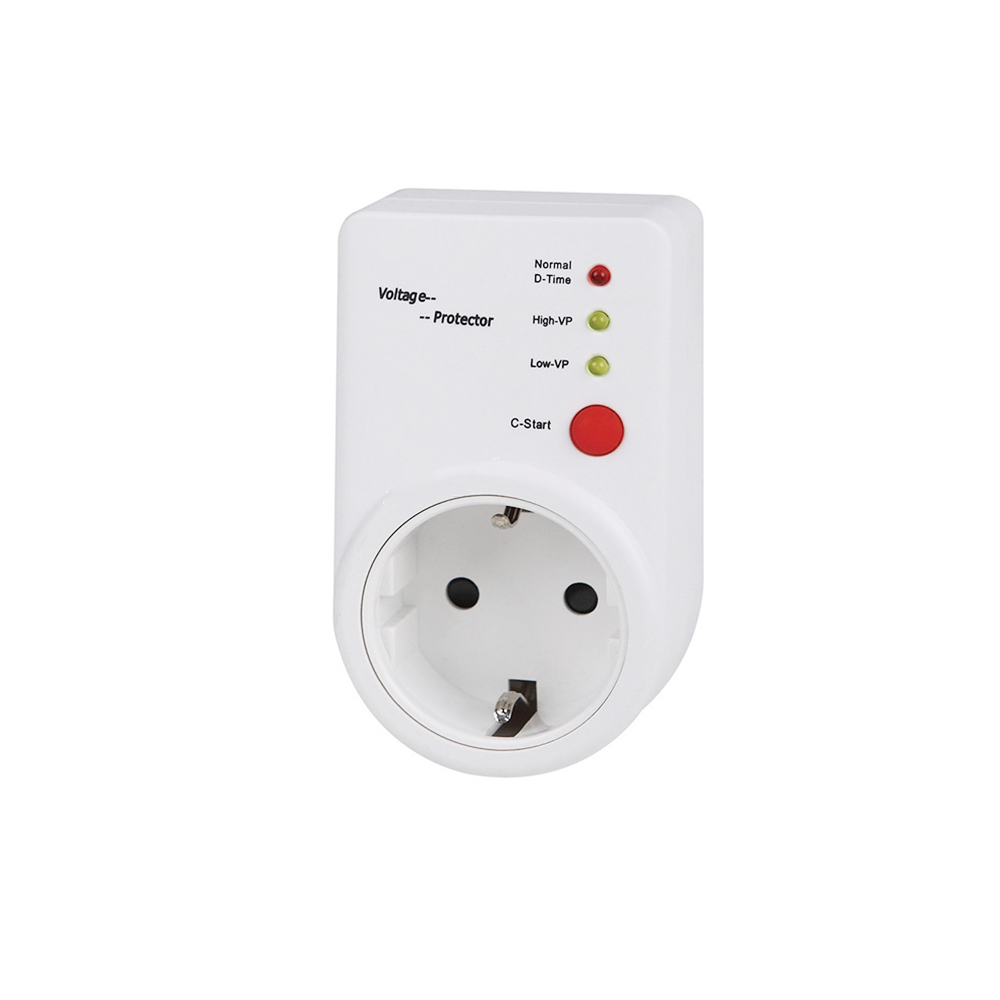

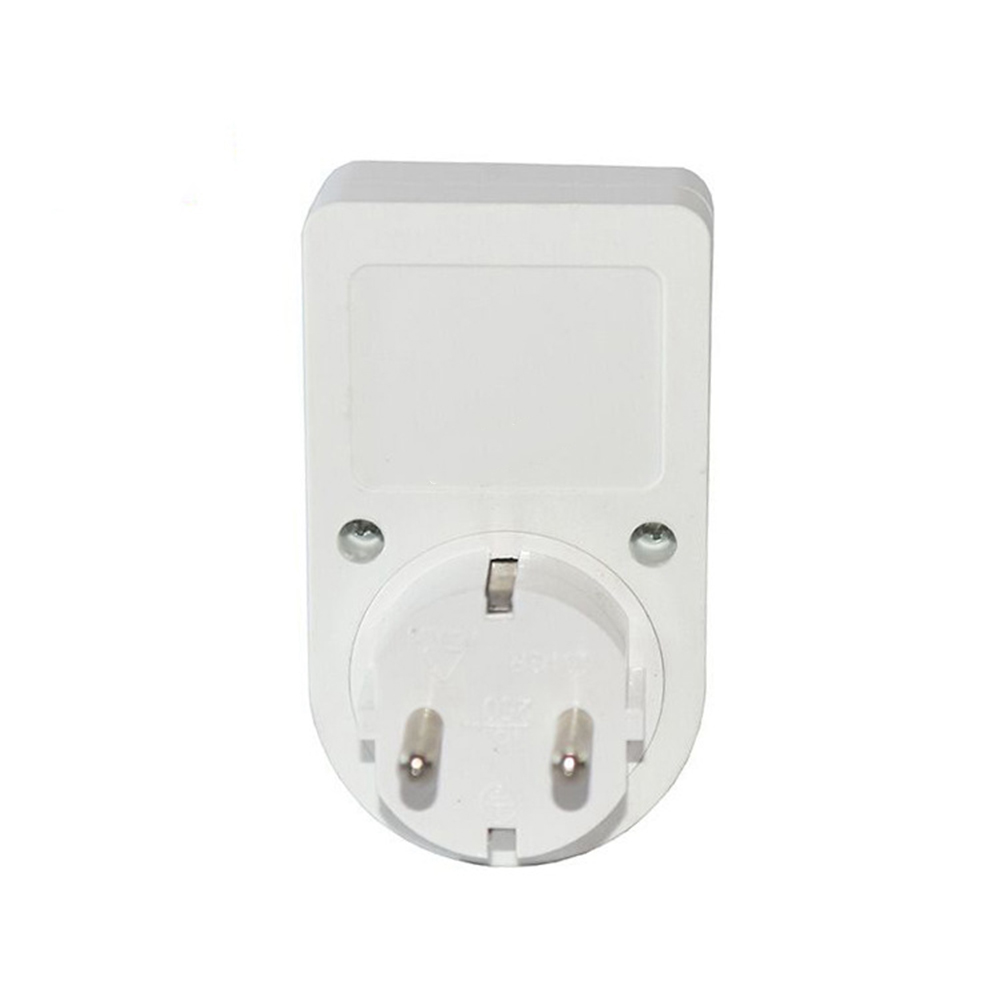

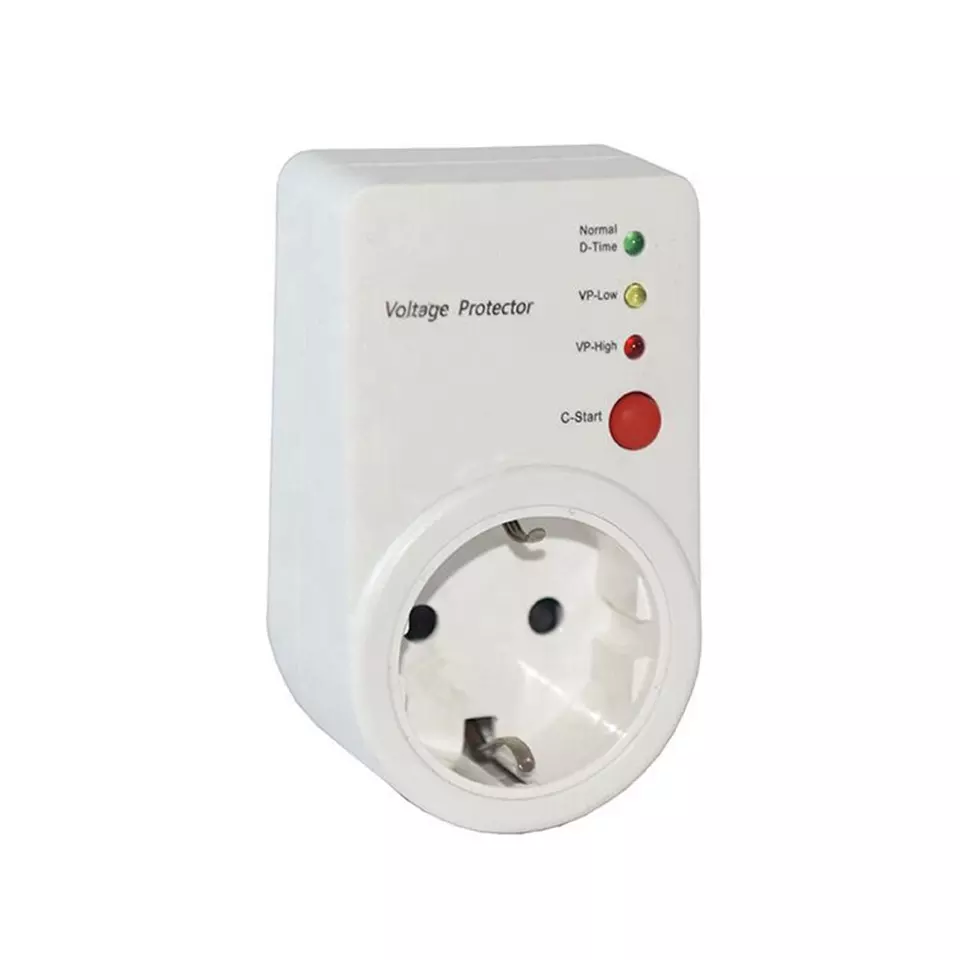

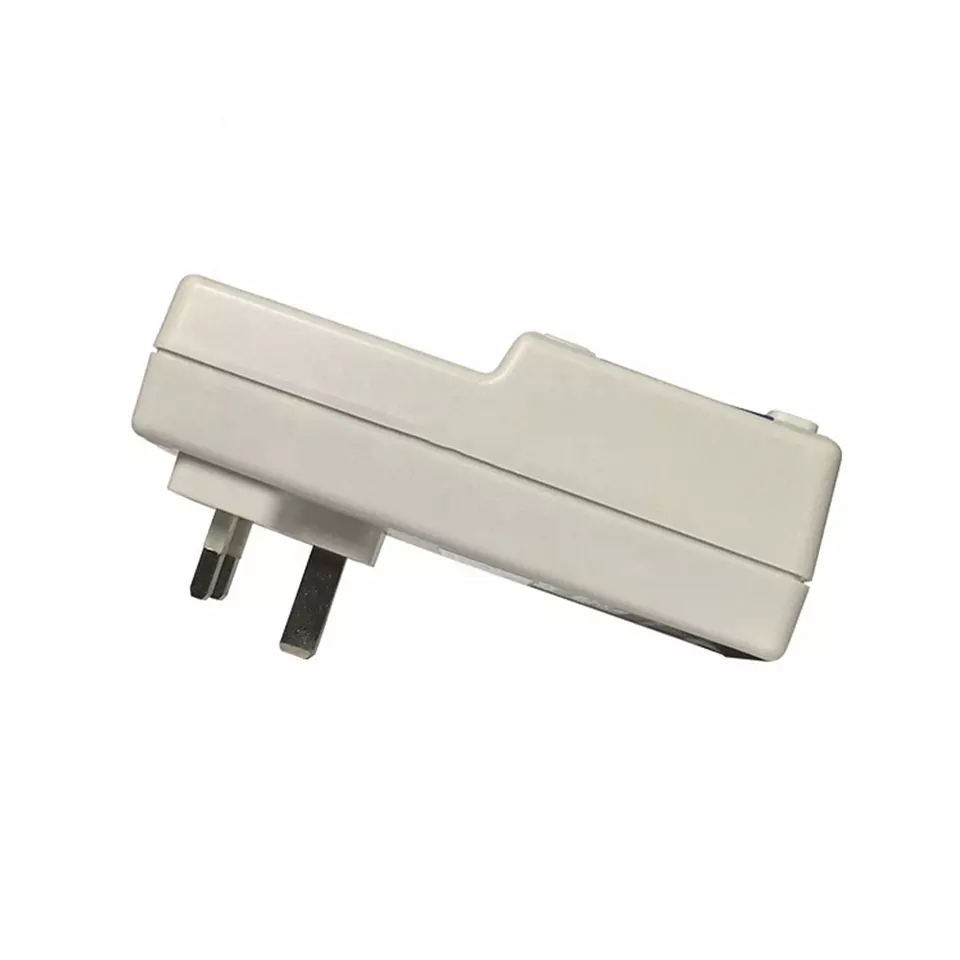

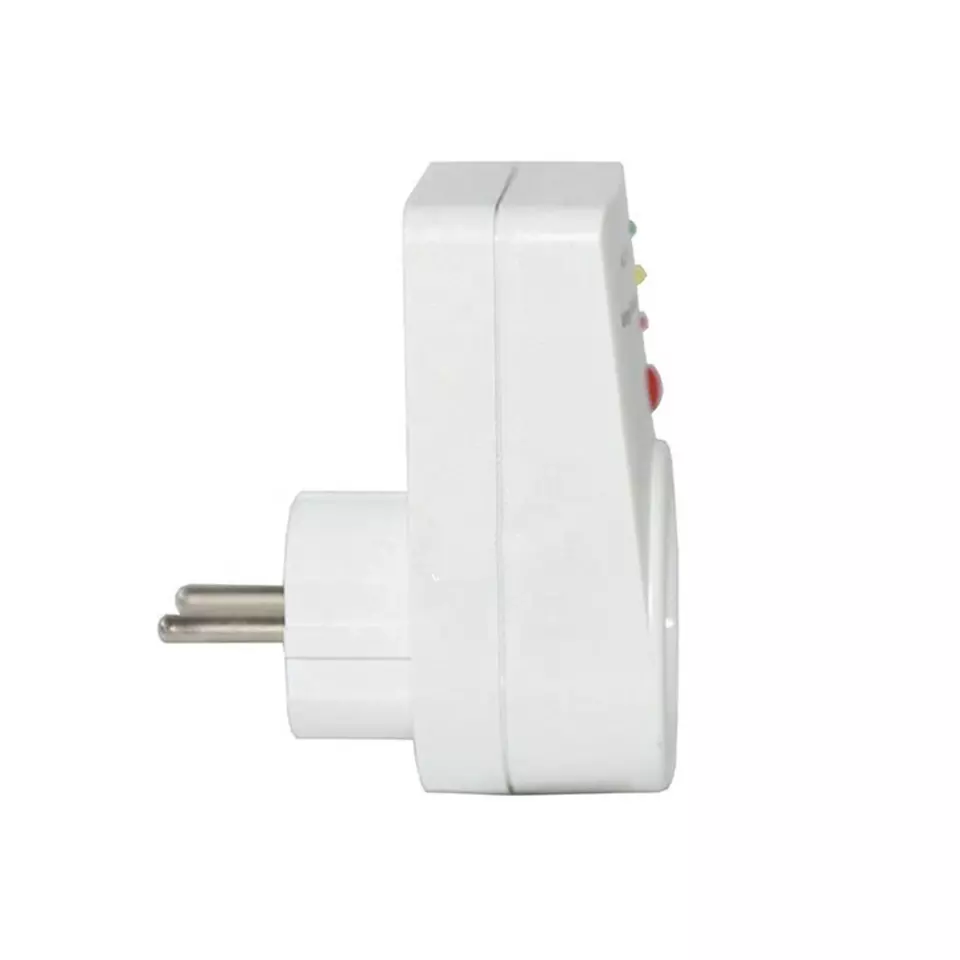

Open Electric 220V power voltage surge protector socket for European market

Open Electric 220V power voltage surge protector socket for European market

online service

Tel:0577-62621999

Email: john@opengroup.cc

Skype: john@opengroup.cc

WhatsApp: +8613868760920

PDF Download
Inquiry
No previous
No next
  • Product description

220V power voltage surge protector socket for European market
Product Description

Due to imperfect infastructure, lightning, peak electricity consumption, and remote areas such as rural areas (the power supply line is too long), the voltage is not as stable as 220V or 110V always.



The most direct hazard of excessive voltage is to accelerate the insulation aging of electrical equipment and reduce the life; if the voltage is higher than a certain range, it will directly burn the electrical appliances (such as: TV, DVD, stereo, etc.), which will seriously damage the electrical appliances. Even causing a fire;

When the voltage is too low, since the rated power of the load is fixed, the current will become large, and when the current is too large, the motor and the air compressor will be irreversibly damaged. For example: refrigerators, freezers, pumps, washing machines, air conditioners, etc.;



Our voltage protectors series products is the economical and practical way to solve this problem.

First, with a 220V protector as an example, we will have a preset value. If the factory setting is 165-250V, then our product will cut off the power when the voltage is lower than 165V or higher than 250V. To ensure the safety of electrical appliances. When the voltage returns to the set range, the power is automatically turned on.



Model

Voltage protector

Function

Over&Undervoltage protection

usage

TV,fridge,wash machine, water heater,Air Conditioner etc

Rated voltage

230V  or 120V  50/60Hz   Optional

Rated Current

10A 15A 16A 20A  optional

Under voltage protect

230V: 165V ;   120V:  85V

Over voltage protect

230V: 250V ;   120V:  135V

Surge protect

100J

Delay time

30S  60S  90S 180S Optional

Encousre material

ABS

Bracket,Plug material

Copper

Plug Type

EU



Open Electric 220V power voltage surge protector socket for European marketOpen Electric 220V power voltage surge protector socket for European marketOpen Electric 220V power voltage surge protector socket for European market
